Contact CSKey features

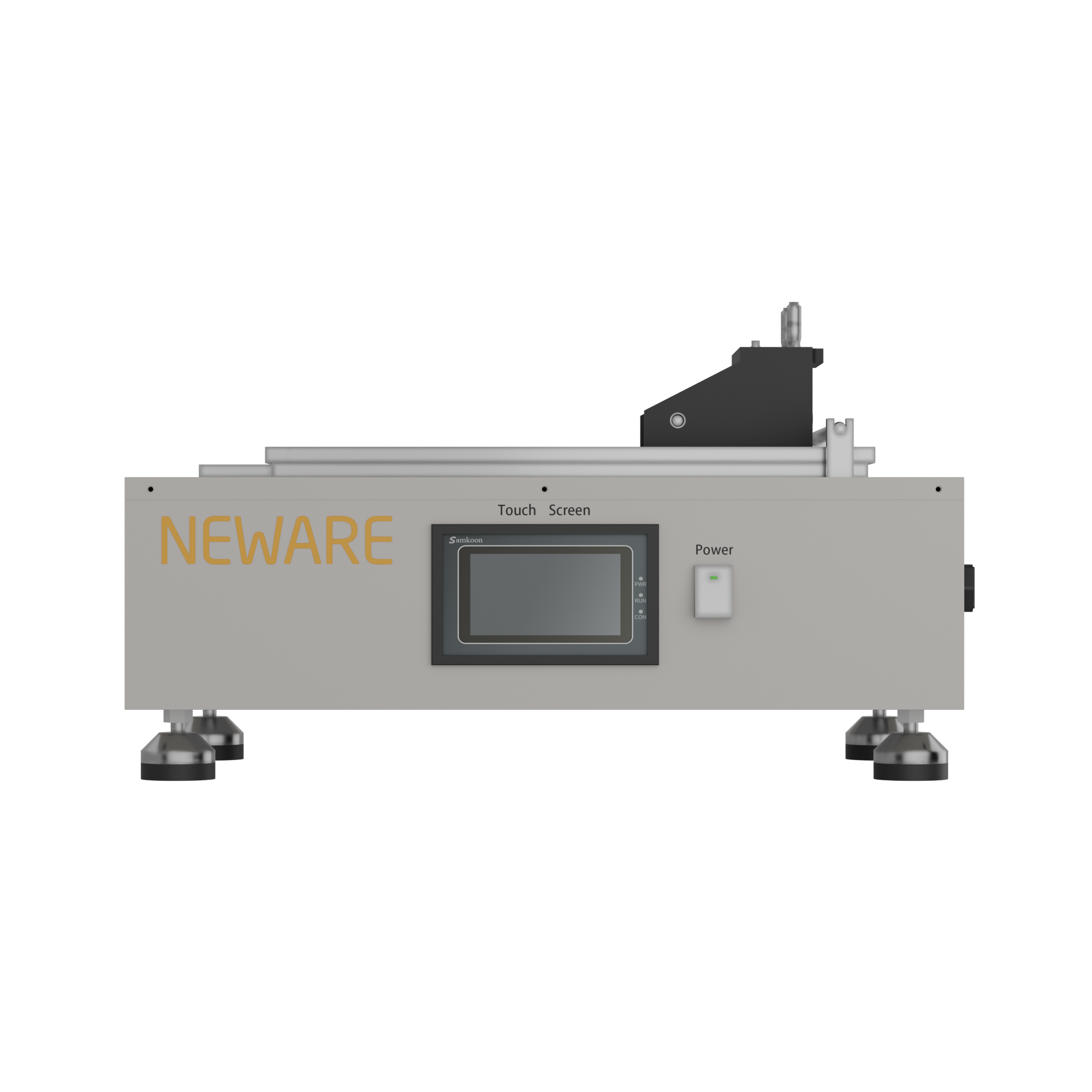

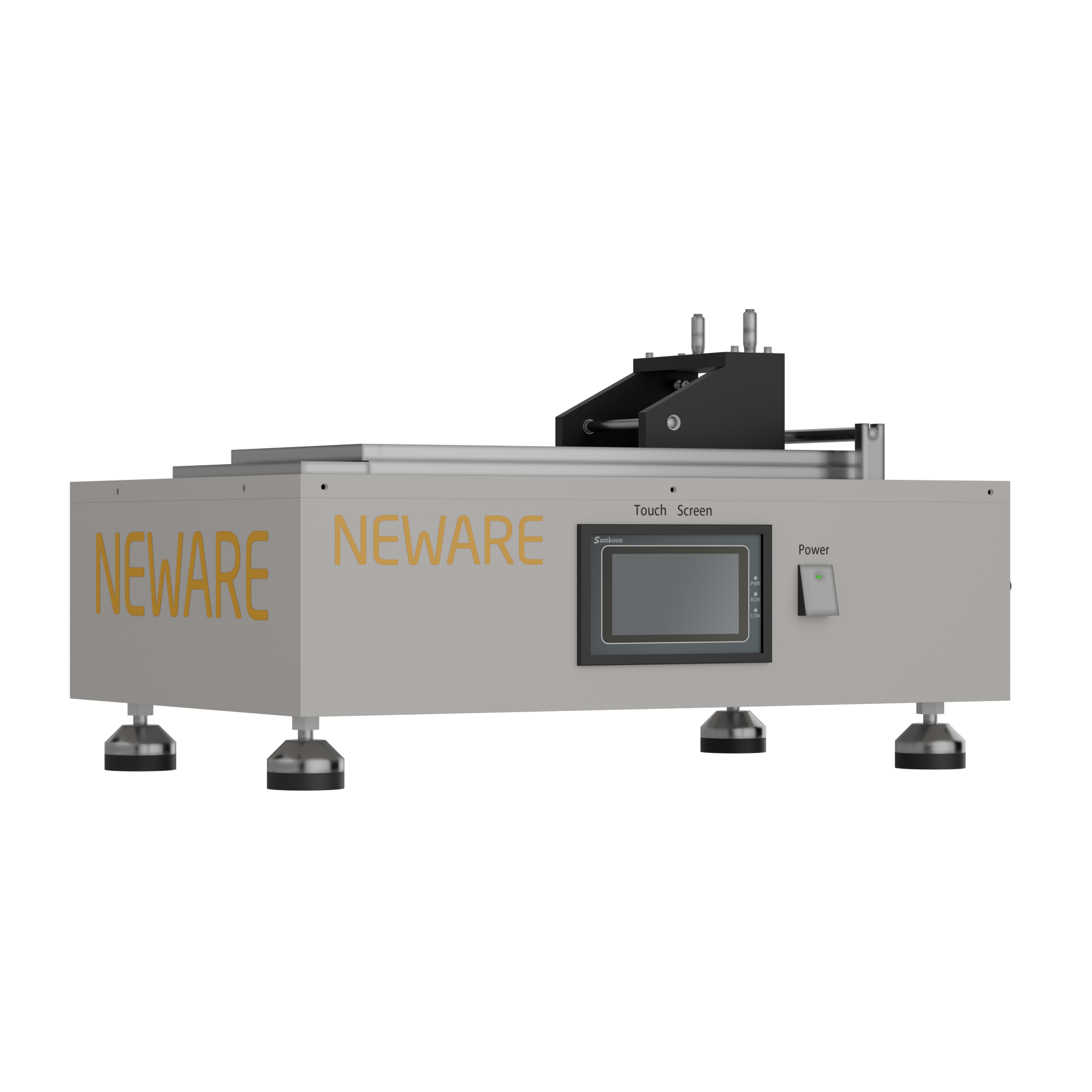

PLC touch screen control, easy to observe the parameter setting.
The coating speed is adjustable in the range of 0~150mm/s.

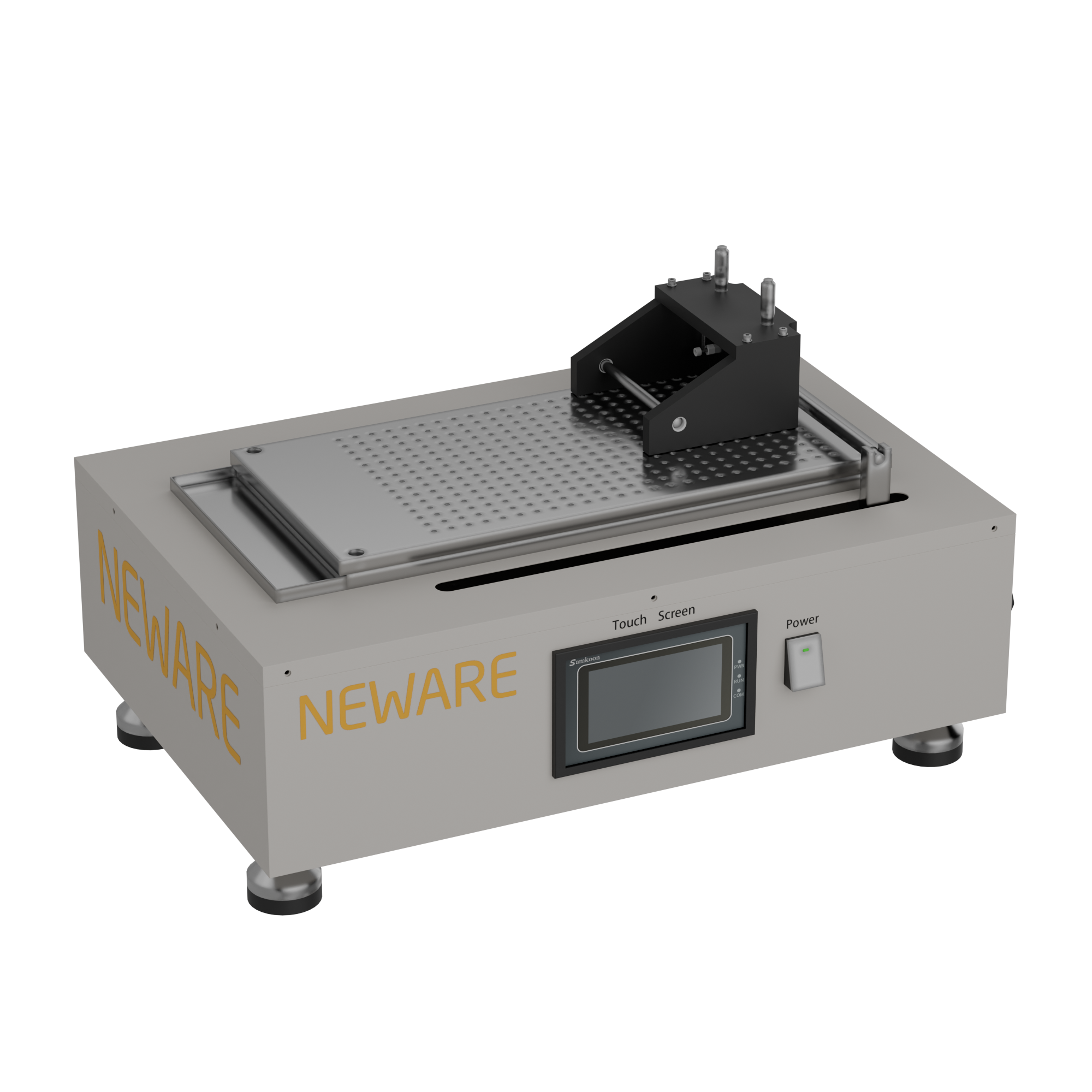

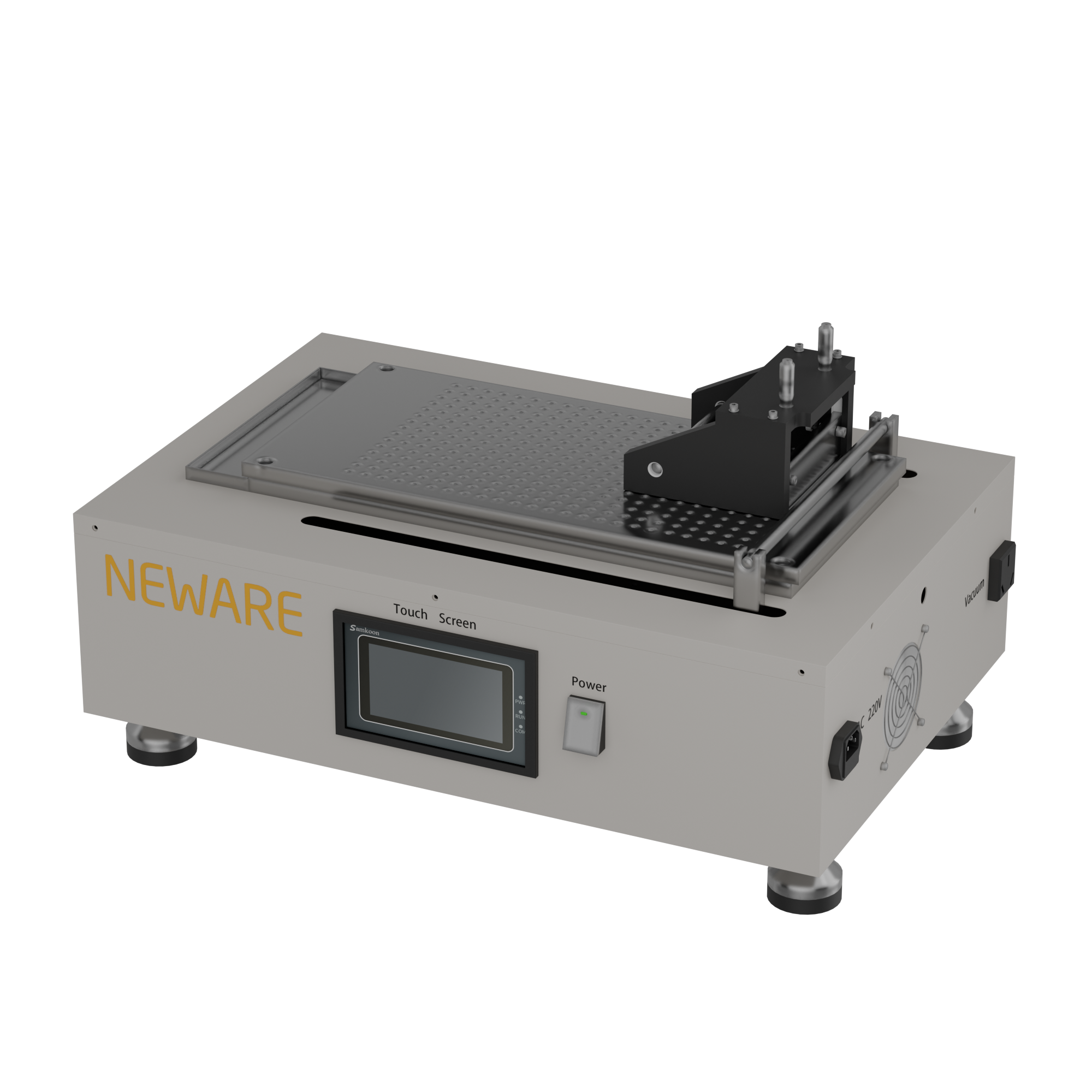

Vacuum aluminum disc for quick placement or removal of substrates.
The stroke can be adjusted in 0~300mm.
Squeegee with micron-level adjustable film applicator (scale 10μm) and width 100mm.
Small size, space saving.
The appearance is exquisite, and the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.
Technical parameters
Coating speed: 0~100mm/s.
Coating film width: 0~150mm (customizable).
Maximum stroke: 300mm.
Coating thickness accuracy: ±3μm.
Vacuum plate: with vacuum aluminum plate (convenient for the adsorption of substrate).

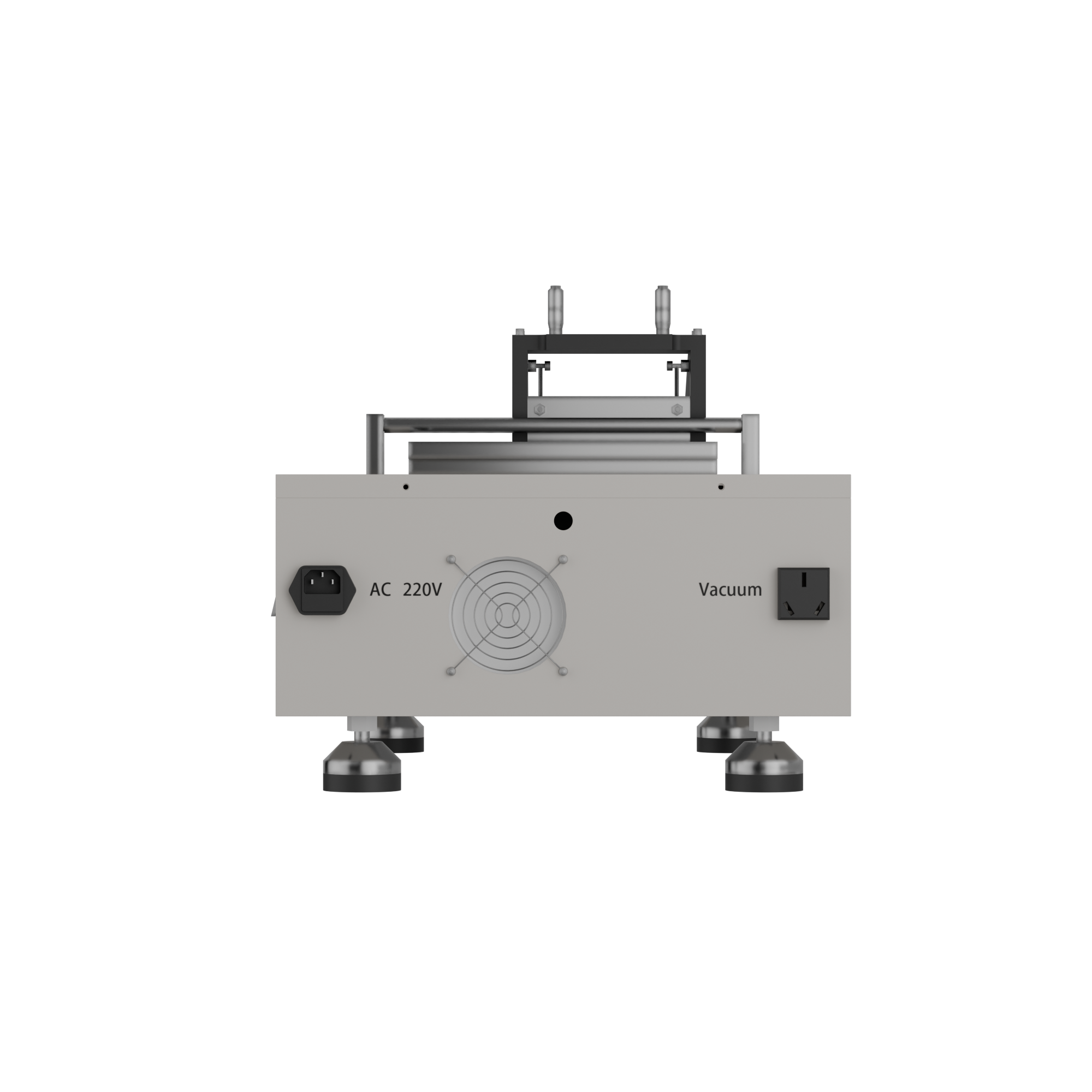

Built-in vacuum pump.
Vacuum plate size: 410×200×30mm (L×W×H).
Adjustable range of scraper: 0~3.5mm.
Power supply: 220V/50Hz.
Weight: 50kg.
External dimensions: 550× 310× 330mm (L×W×H).
