60A Prismatic Cell Toggle Clamp
暂无
Contact sales rep for prices
Selected items Inventory 10000
No selection yet
Contact CS
Contact CS
Product desciption
Comments
FAQ
Model: PTF-F-ZJ-60A-1CH-LP
Current: 60A
Battery Size: Length: 6.9" (175mm)
Width: 2.8" (72mm)
Height: 8.1" (205mm)
Tab Spacing: 2.8"-5.1" (70-130mm)
External Size: 23.6"×10.4"×6.2" (600×264×158mm)
Weight: 9kg
Wire Terminal: M9

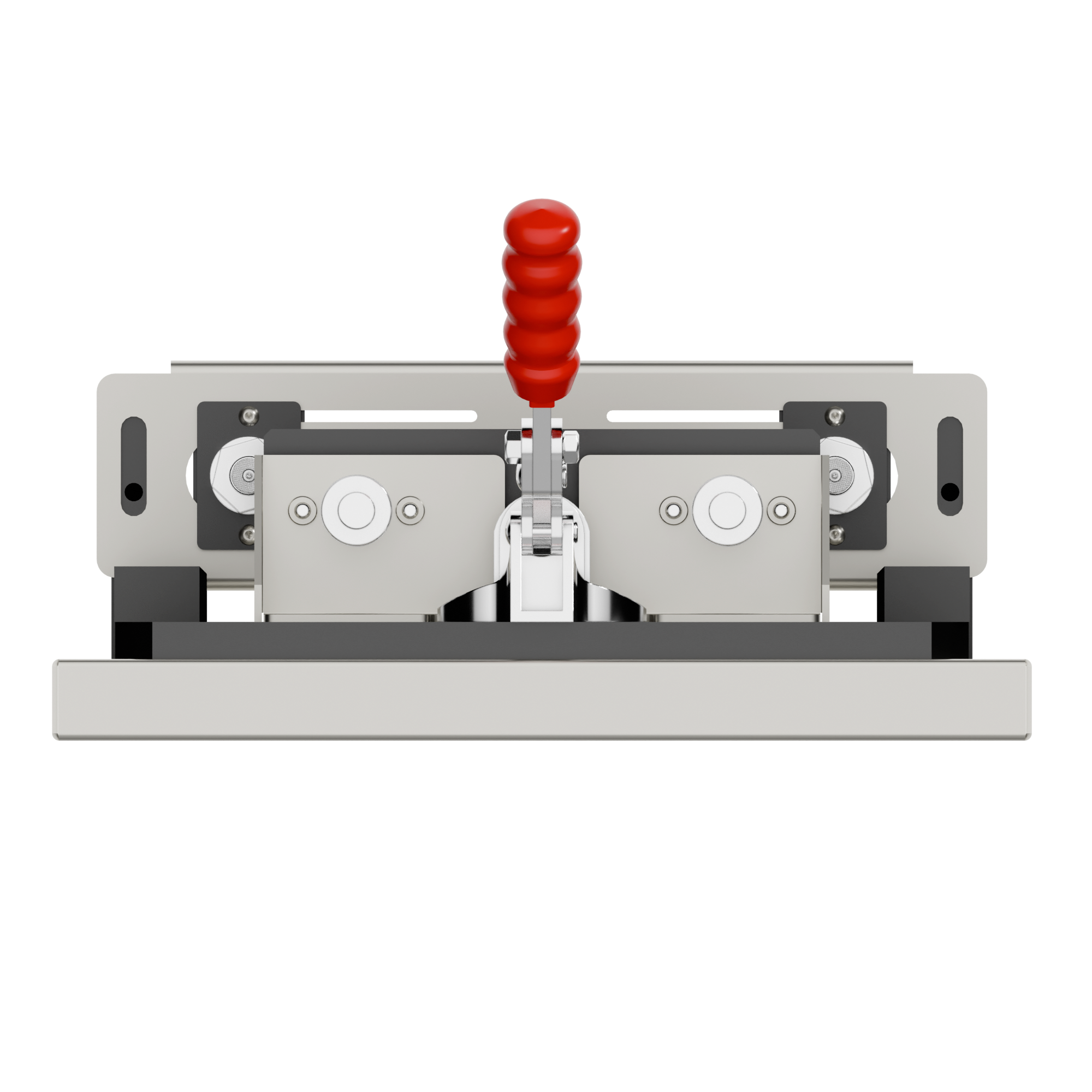

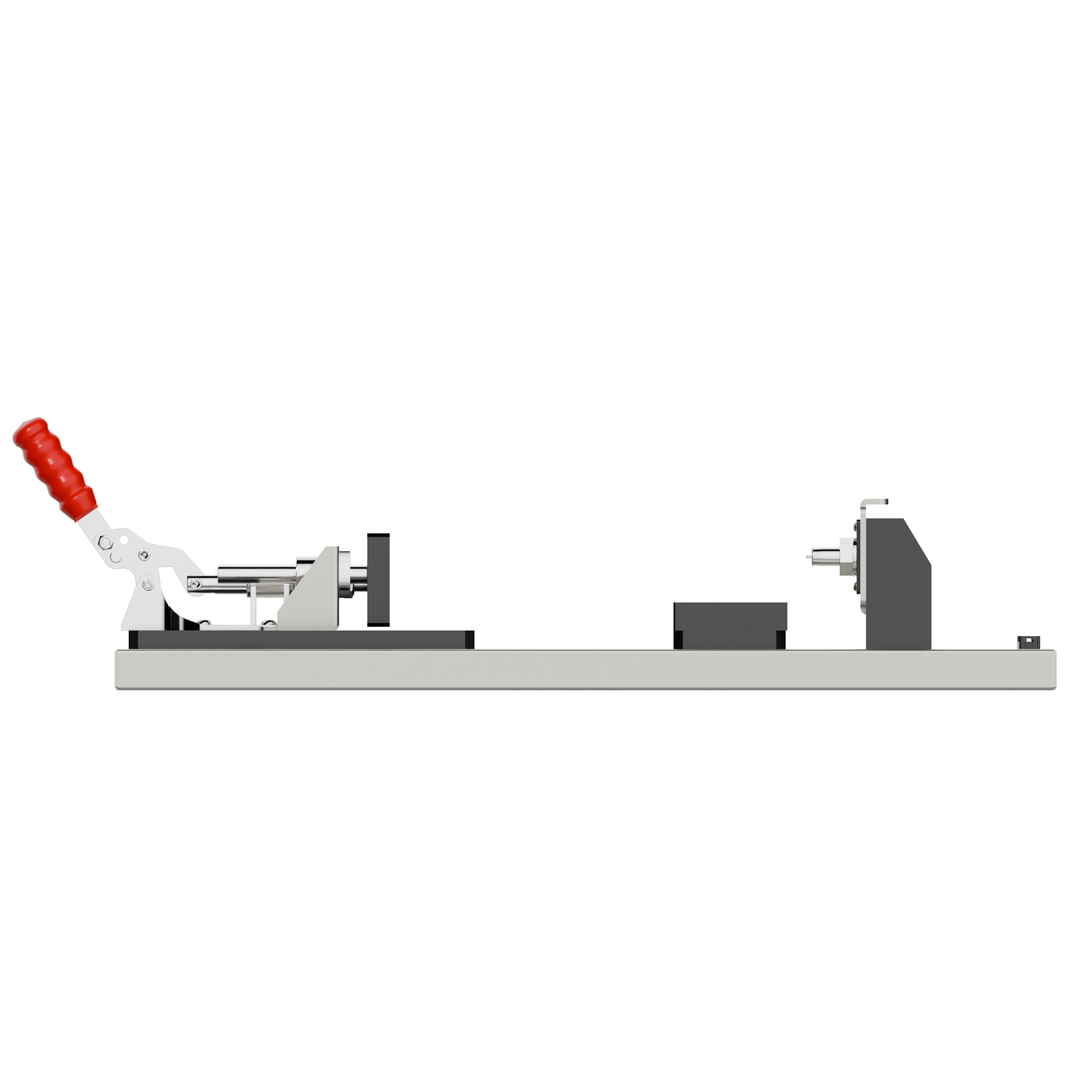

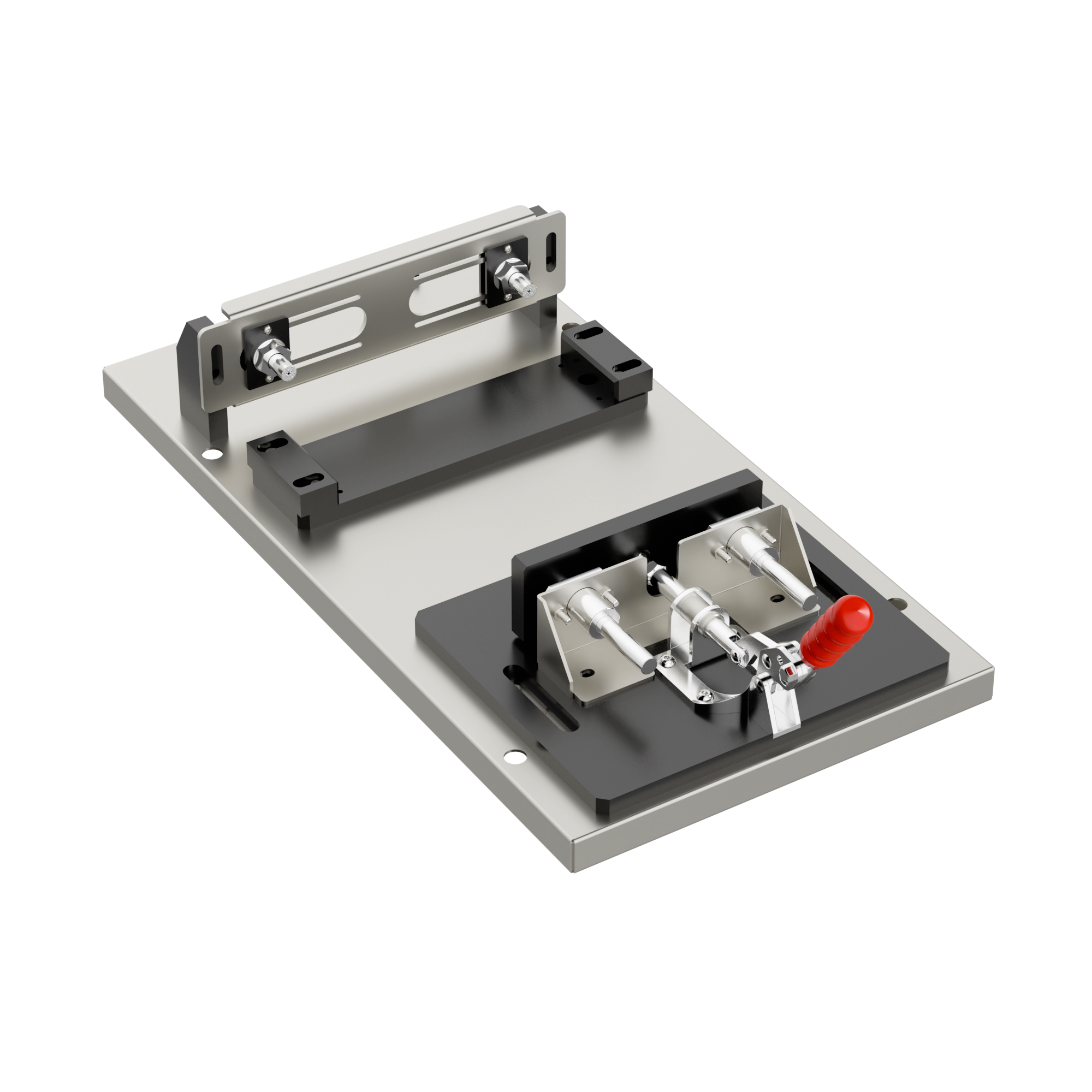

For testing 60A prismatic batteries, it can be fixed on a temperature chamber tray to conduct battery performance tests at different temperatures. The toggle clamp makes battery placement and removal easy and effort-saving, and gold-plated probes ensure stable current transmission.
